Any Offers will be immediate reviewed
YOM 1997
Last in Production 2018, Professionally Deinstalled, 208V, 50/60 Hz, with Transfer Chamber Lift, HP Robot with Metal Blade, Endpoint with Four Monochromators, Smoke and Water Leak Detect, Independent Helium Cooling, Seriplex Gas Panel w/Top Feed Exhaust, Wafer Mapping, Wafer on Blade Sensors and Umbilicals.
Chamber Breakdown Includes: [Chamber A: DPS R0
Poly, w/1110-01043 Source RF match AZX 90; Dual manometers with .1Torr and
10Torr Heads, Backside Helium Cooling; 200mm Cathode, & Osaka TG2003M
Turbo] [Chamber B: Poly Etch: Mark II 3 Piece Chamber; Mark II Shields, MxP
Magnets, ESC Cathode, Phase IV RF Match, & Alcatel 5402 CTS Turbo] [Chamber
C: Poly Etch: Uni-Body Chamber; MxP Shields, MxP Magnets, ESC Cathode, Phase IV
RF Match, & Alcatel 5402 CTS Turbo] [Chamber D: DPS R1 Metal/Deep Trench
Etch: Source RF Match w/AZX-90 Upgrade, Dual Manometers with .1Torr and 10Torr
Heads, VAT Throttling Gate Valve, Heated Pump Stack, 200mm Cathode SNNF ESC,
& Alcatel ATH 1300M Turbo] [Chamber E: Wafer Orienter, 200mm Lift Hoop,
200mm Pedestal, Laser, & CCD Array] [Chamber F: Wafer Orienter , 200mm Lift
Hoop, 200mm Pedestal, Laser, & CCD Array]
Remote Equipment Includes: (1ea.) RF Rack with
the Following Configured Generators: [(1ea.) Advanced Energy RFG/AZX Control;
(2ea.) Advanced Energy RF-20RWC; (2ea.) ENI OEM 12B-02; (1ea.) ENI OEM 12B3 and
(1ea.) Osaka TD2000 turbo controller]; (2ea.) Neslab HX150 with Heater Control;
(1ea.) Neslab HX150 without Heater Control; (3ea.) Edwards IH80 Pumps; &
(2ea.) Alcatel ADP81 Pumps.

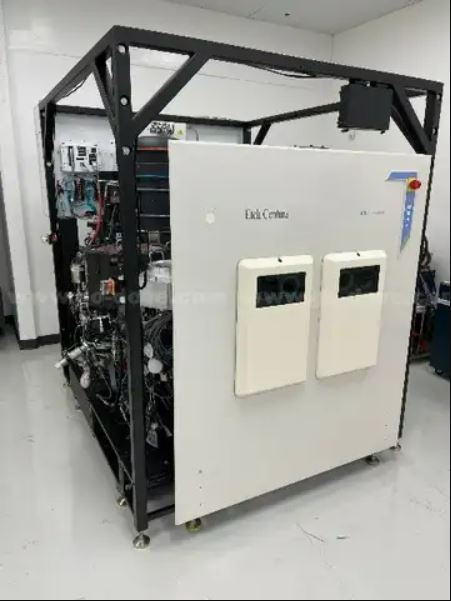

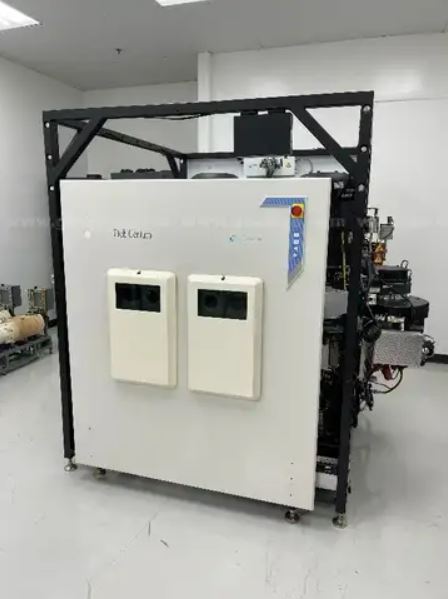

部分現場照片如下,您可點擊圖片進入我司全球網站了解詳情并參與交易:
